Chest mounted Tool Kit
The Tool Kit was designed to provide quick access to the tools needed for deconstructing broken outdoor equipment. A zippered pocket allows for the easy storage of scavenged buckles, hardware, and other useful notions collected along the way. Building this bag taught me the fundamentals of ergonomics and fit, the use of a 3D mannequin for design development, and digital pattern drafting. It also involved carefully deconstructing two discarded backpacks, yielding just enough salvaged fabric to bring the project together.

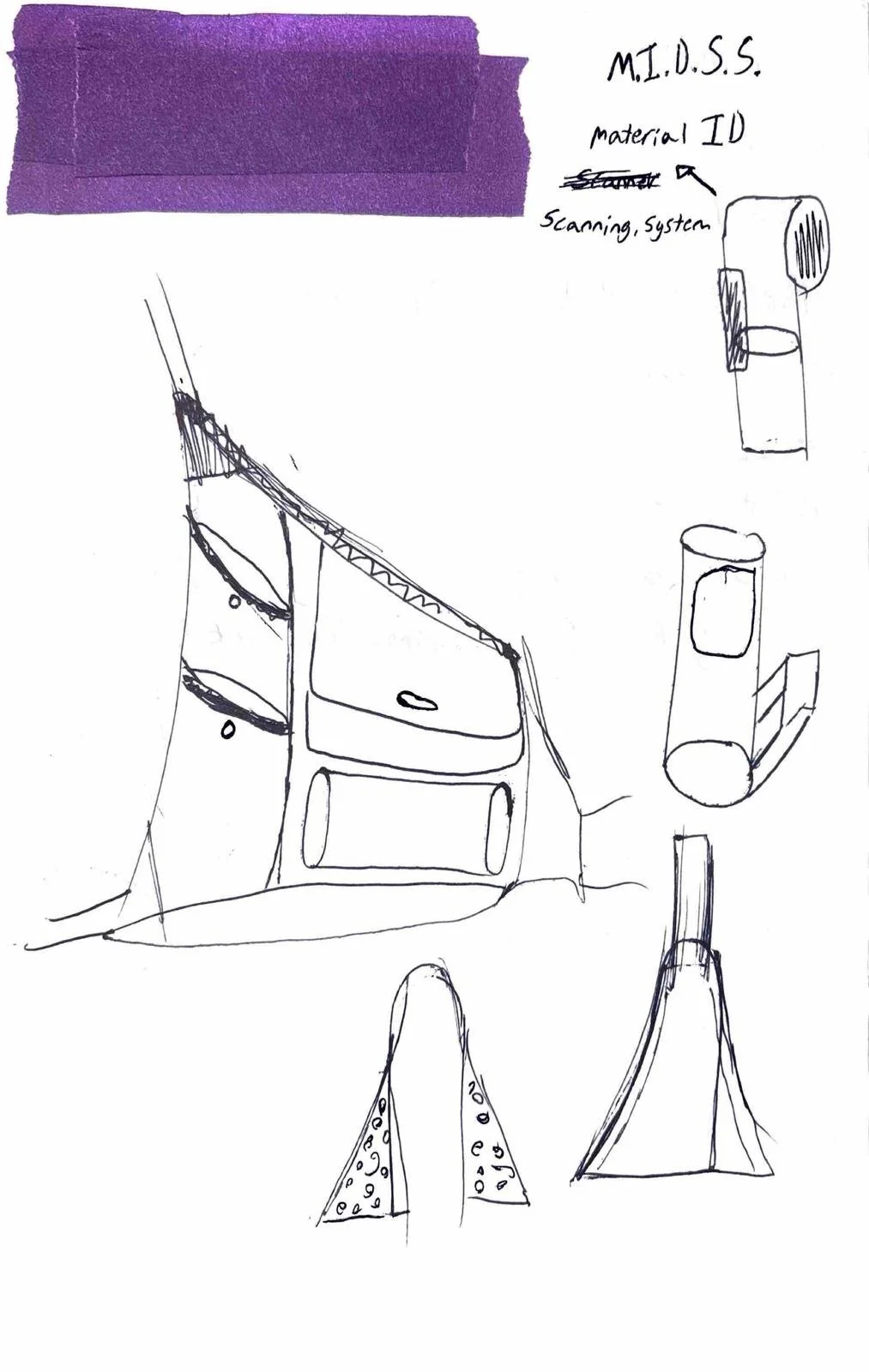

Initial sketch + shape

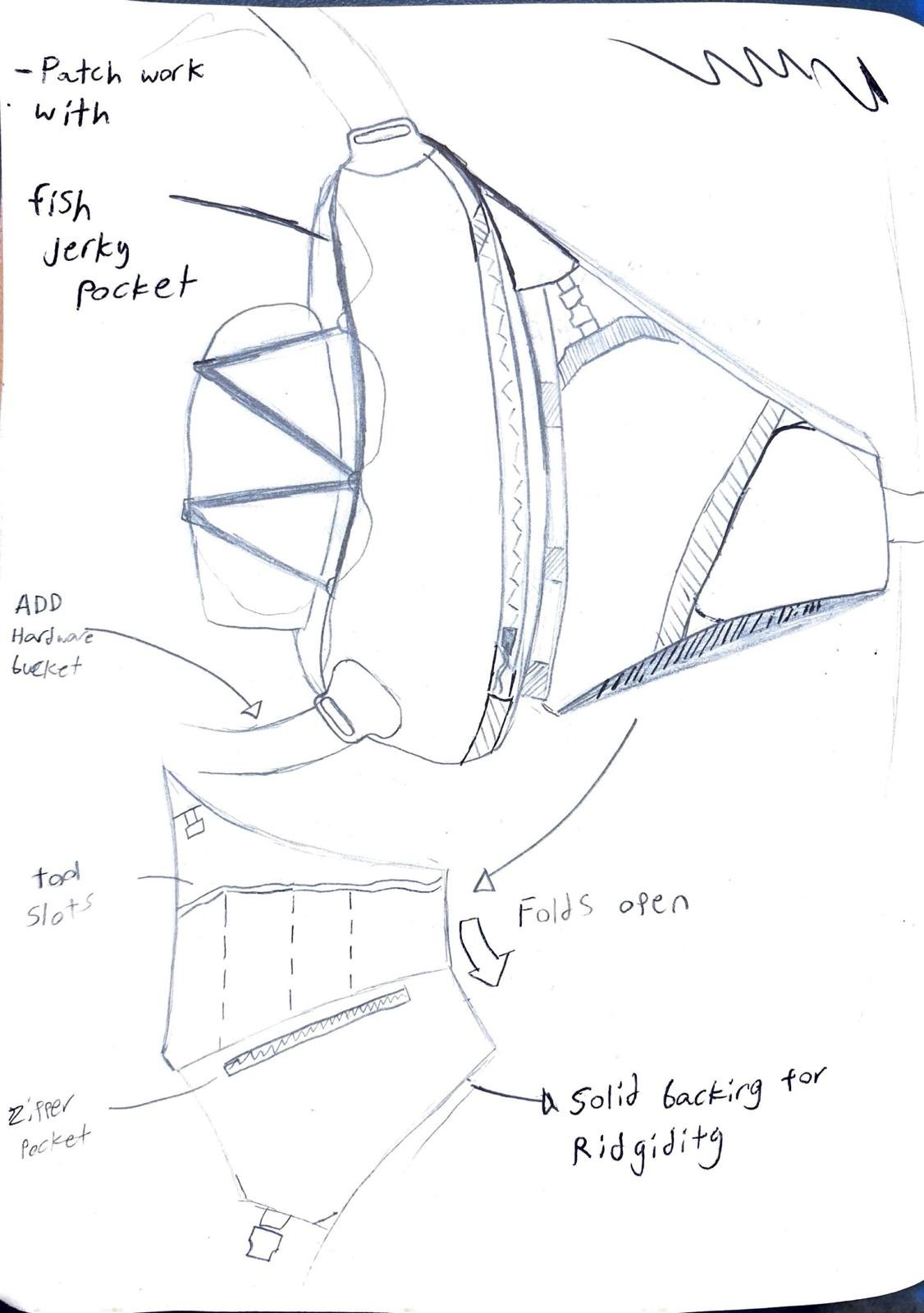

Bag V1 sketch

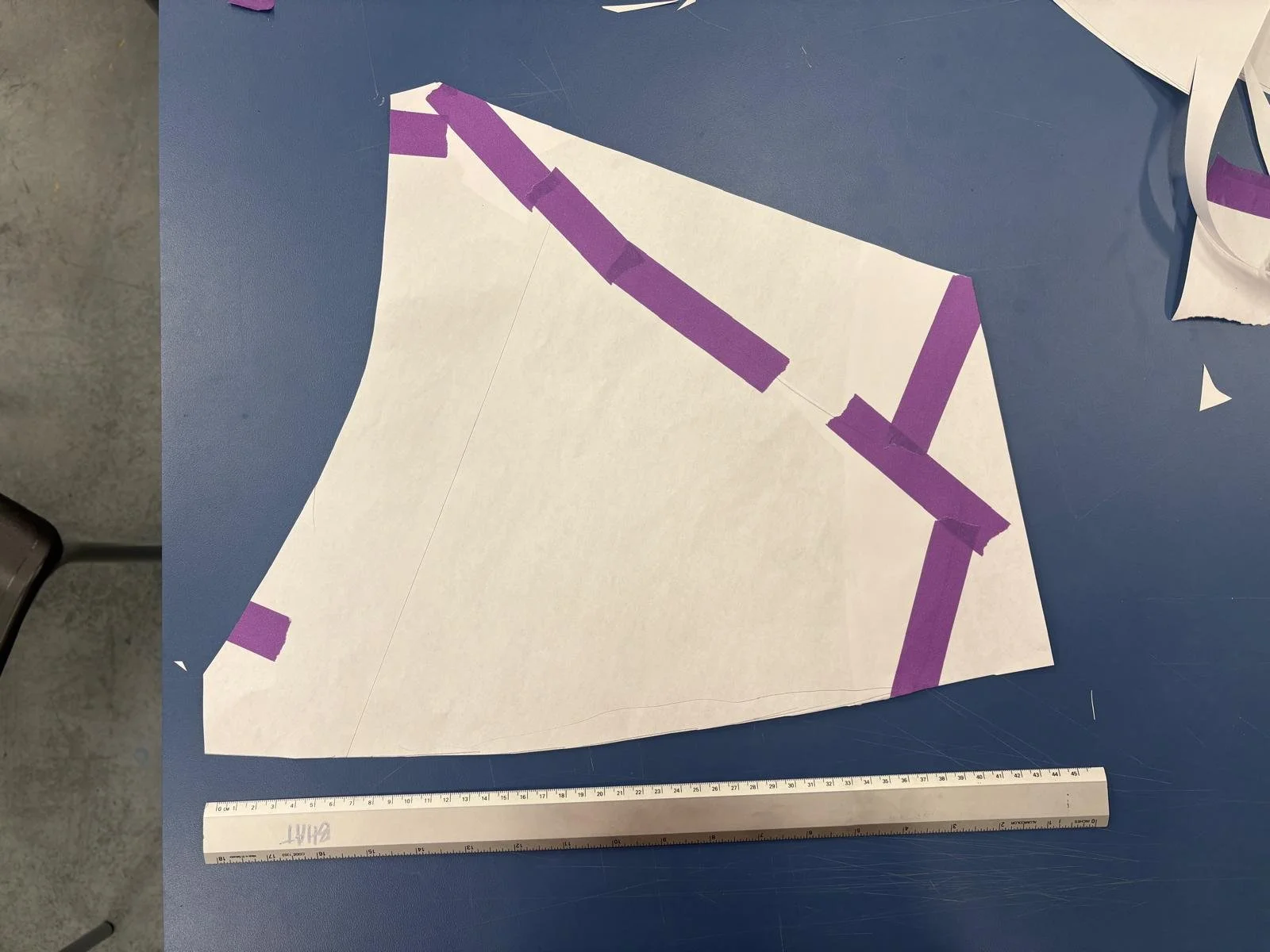

Paper model for ergonomics

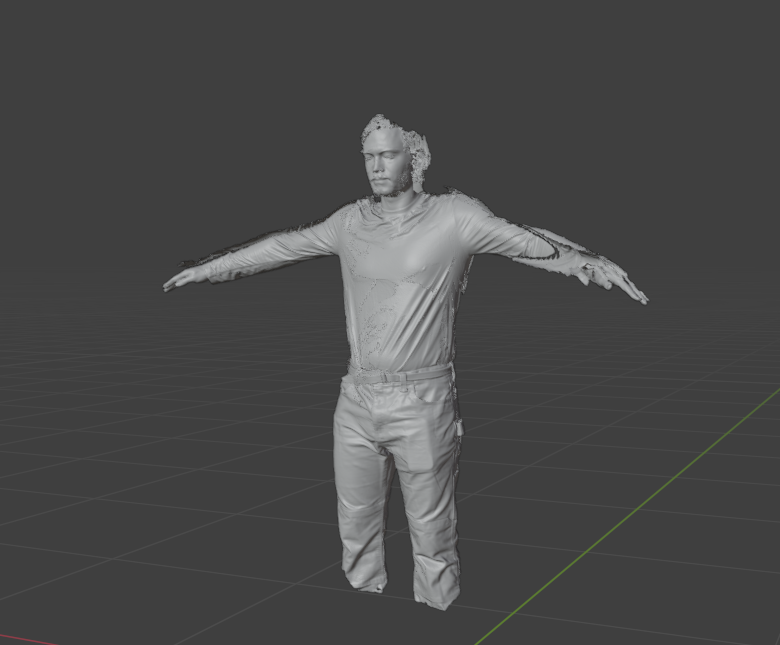

3D scan of myself

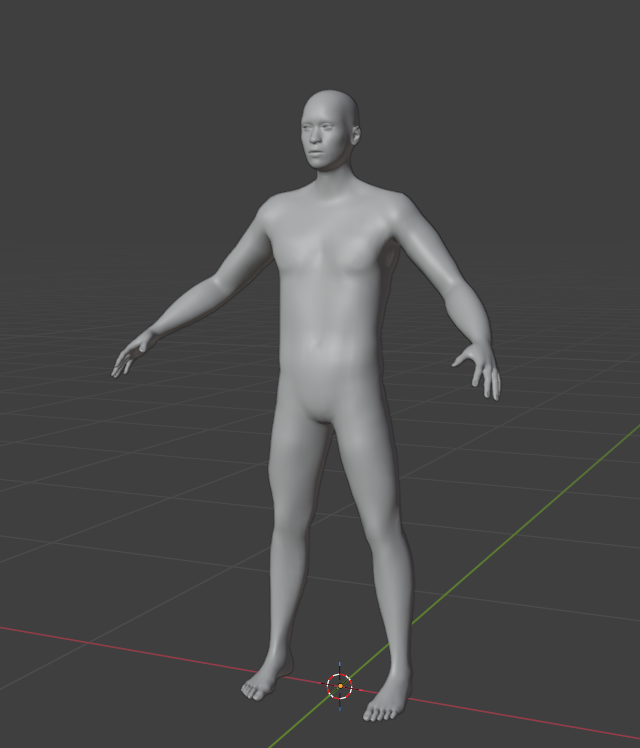

3D mannequin created from my 3D scan

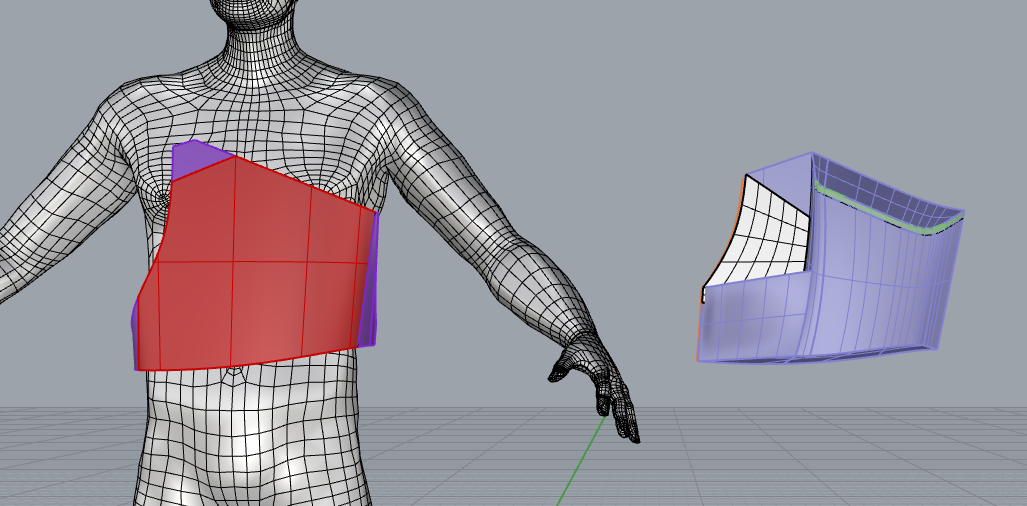

Digitizing paper form and creating initial bag model

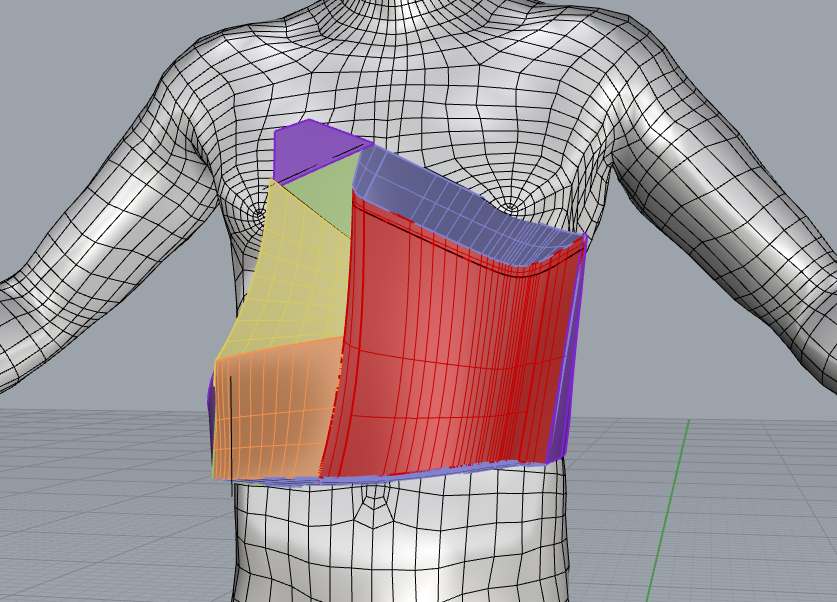

V1 pack patterning

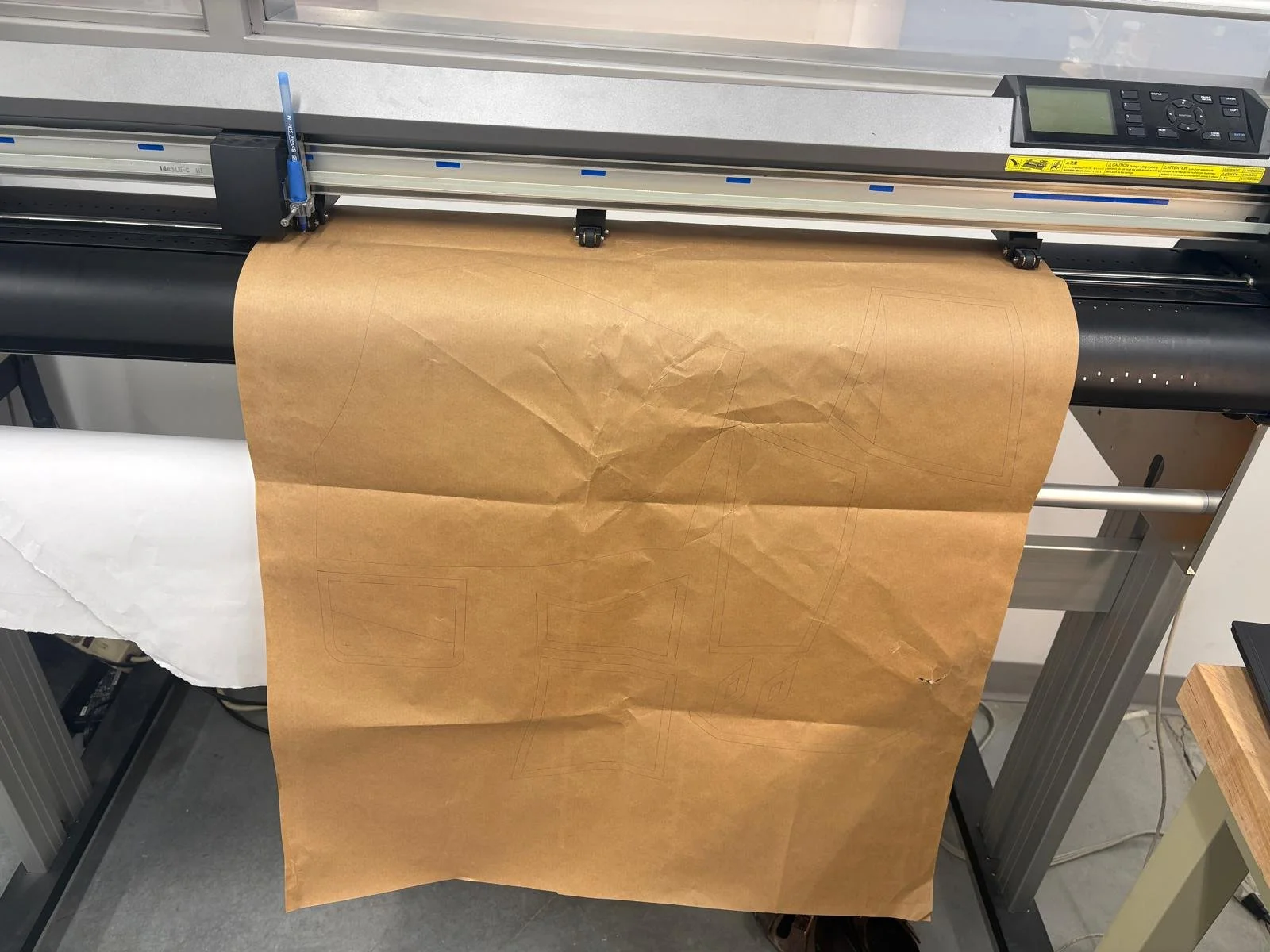

Plotter/cutter used for pattern creation

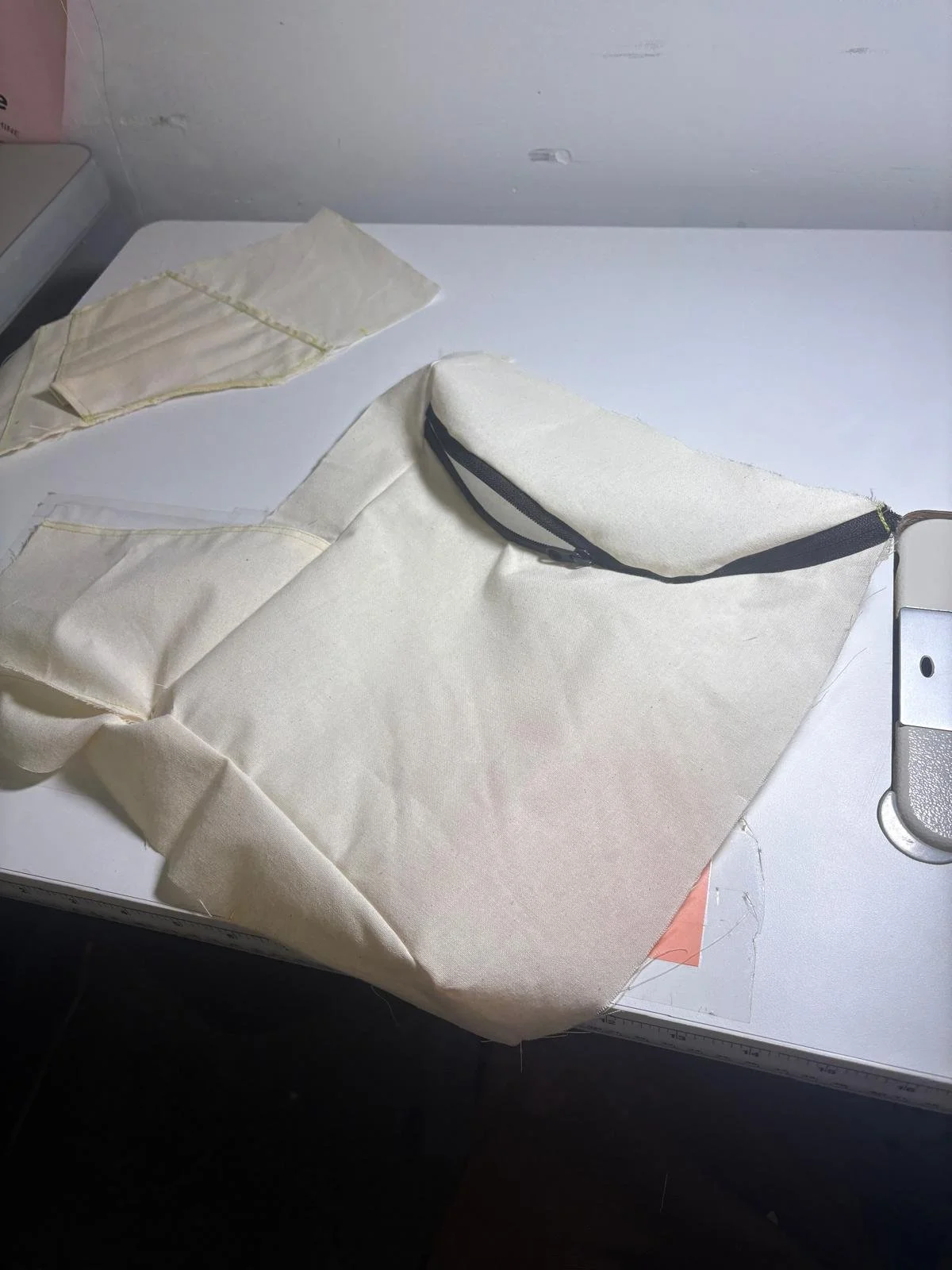

Muslin prototype V1

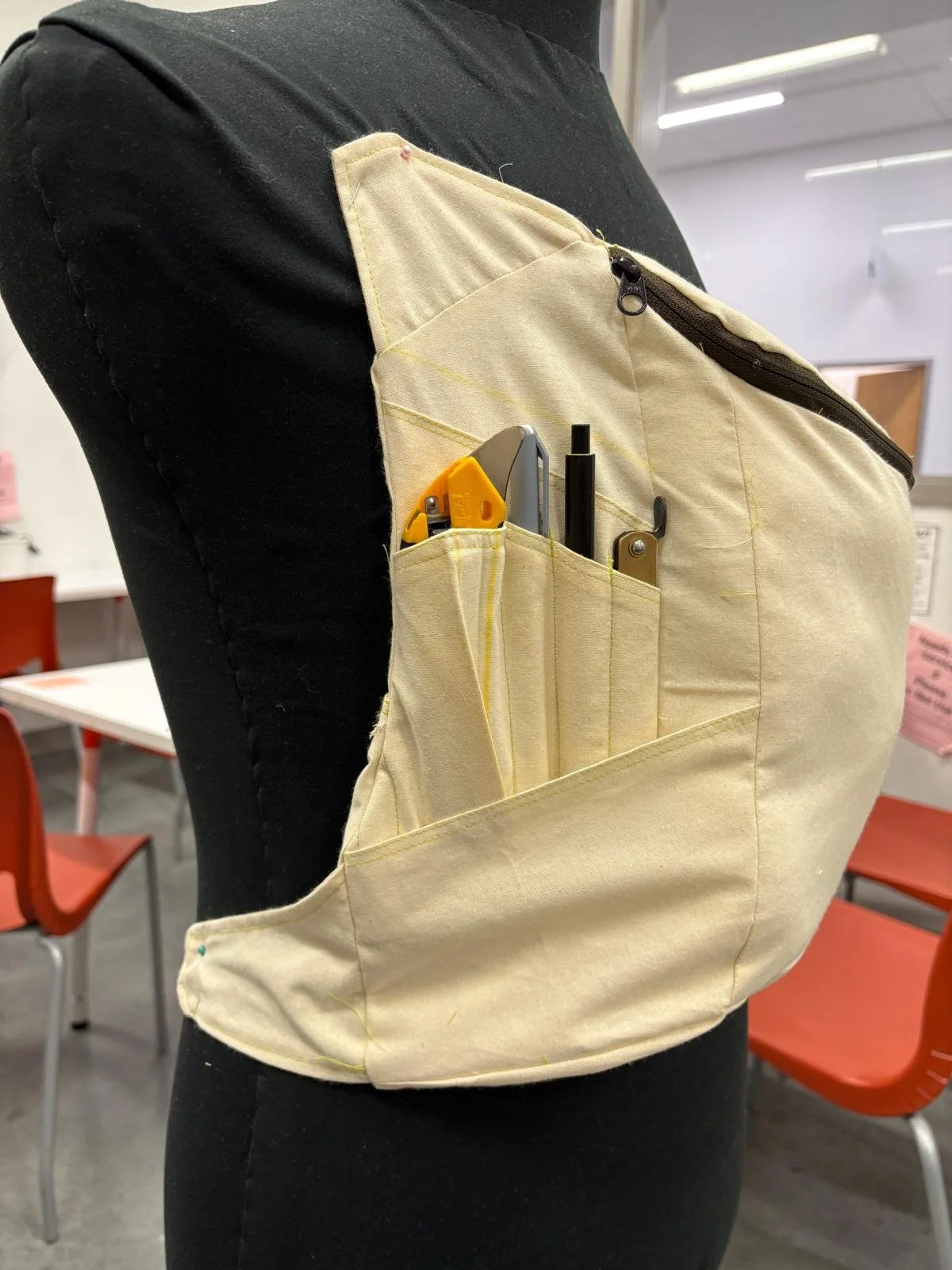

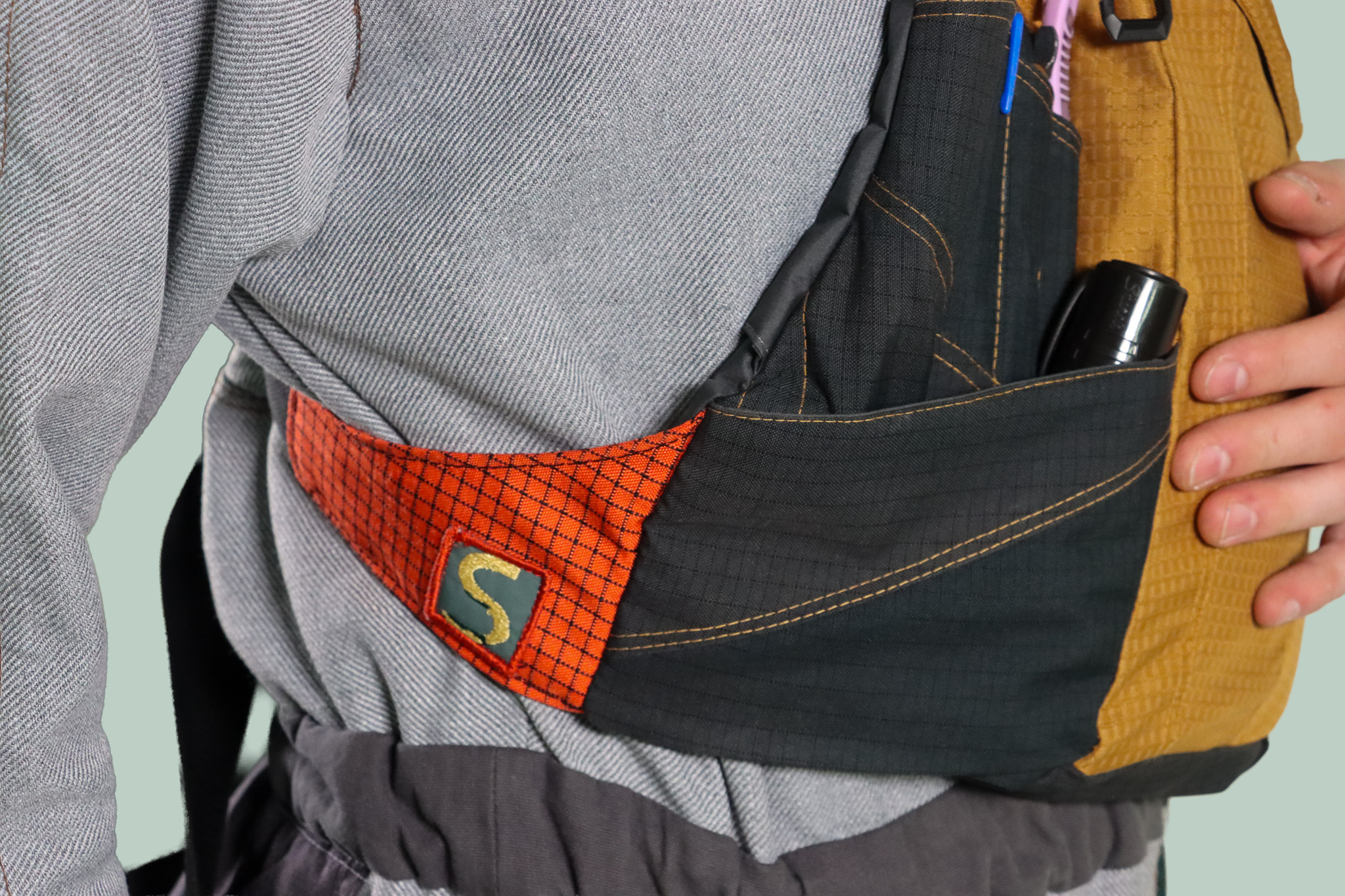

Tool pouch

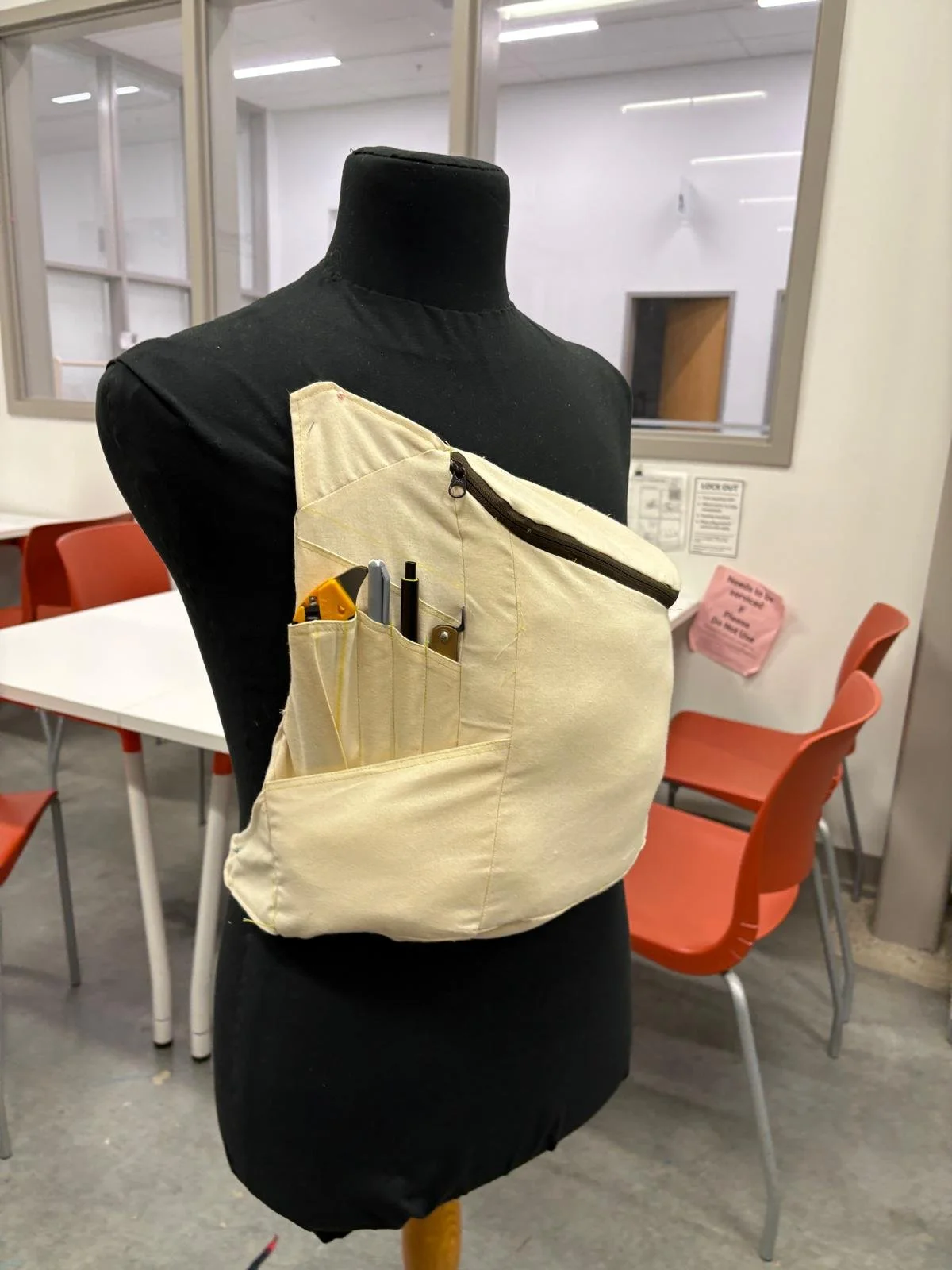

Final V1 prototype

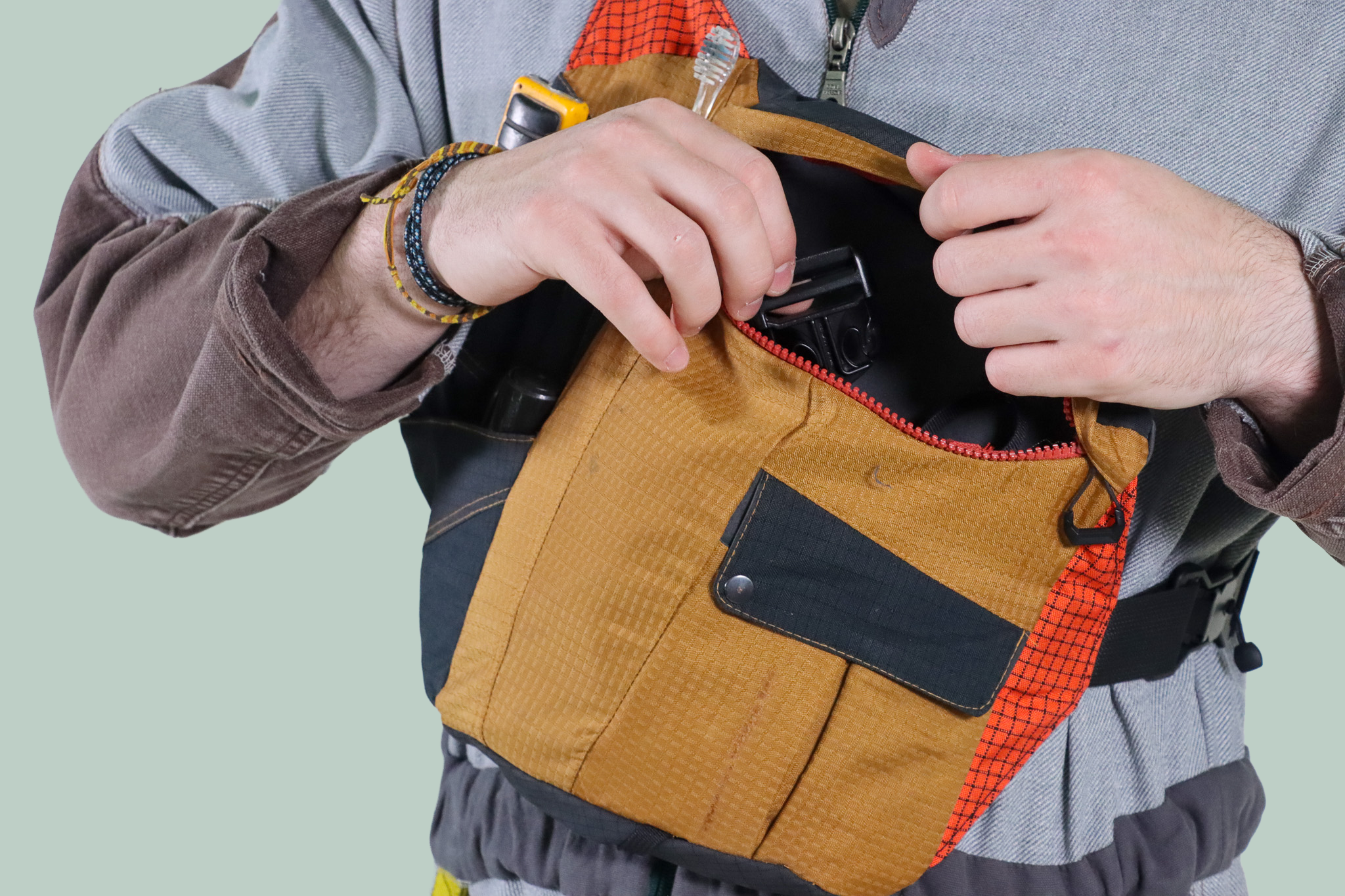

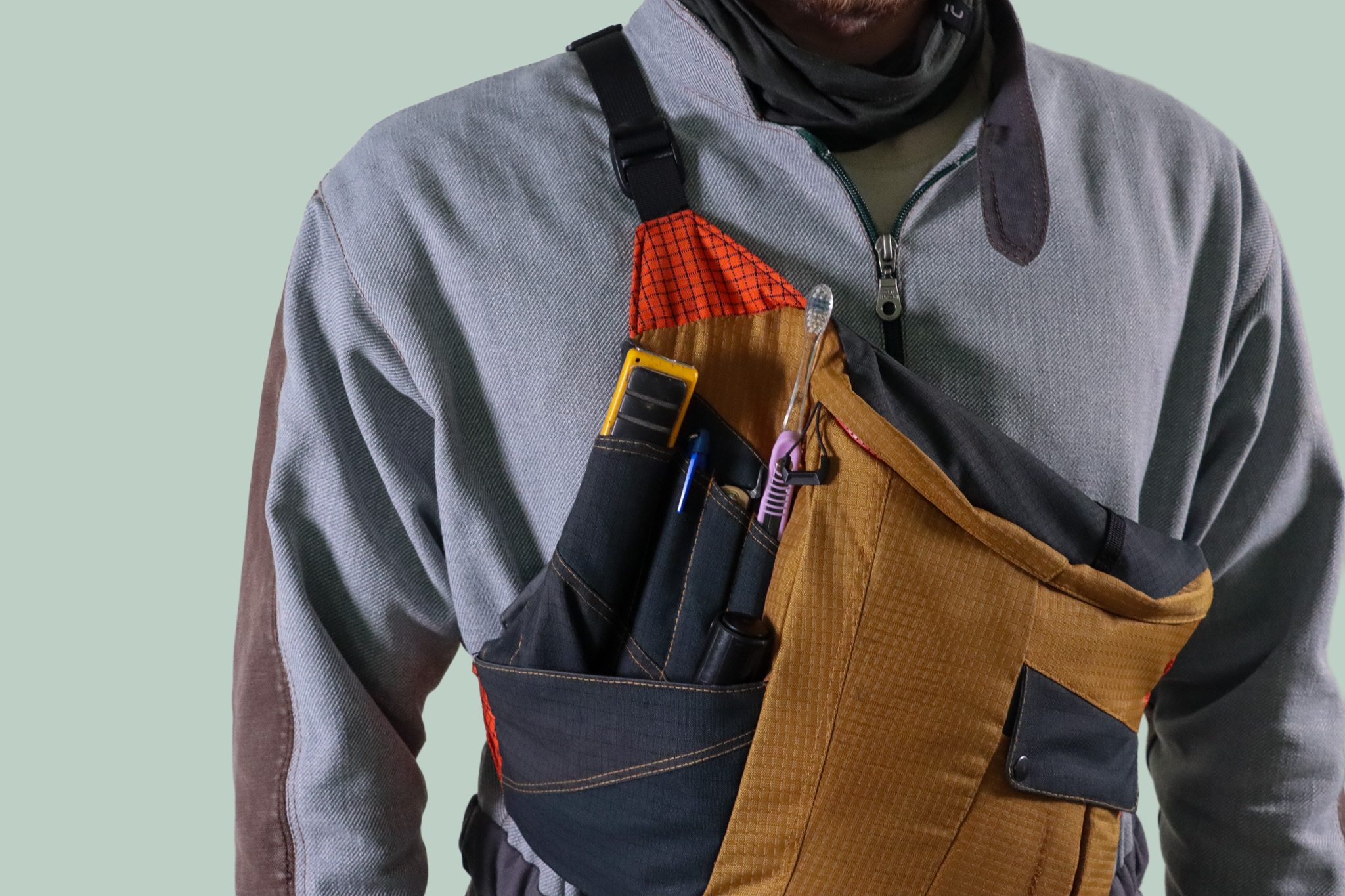

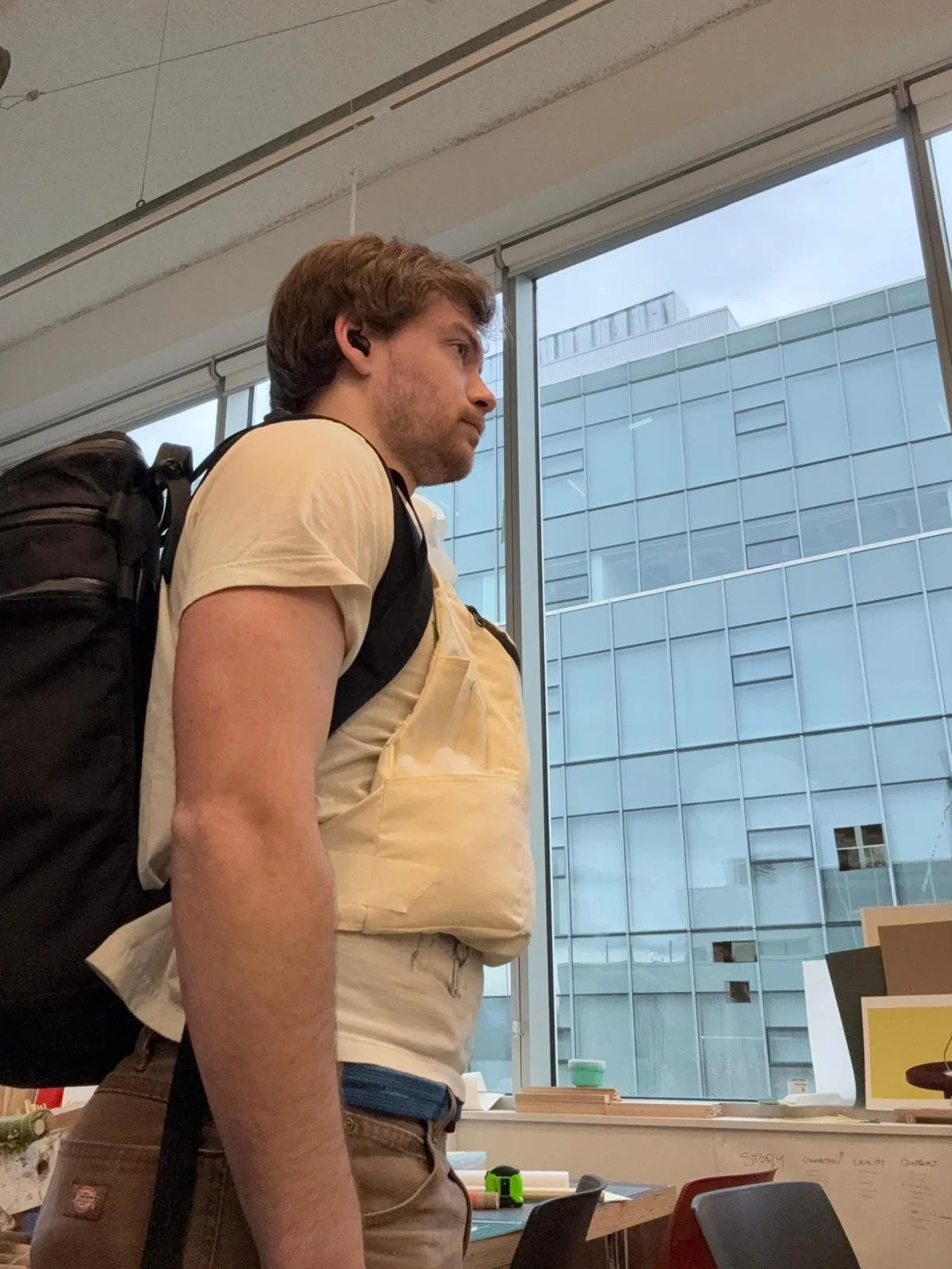

The tool kit was designed to be worn without intruding on backpack straps

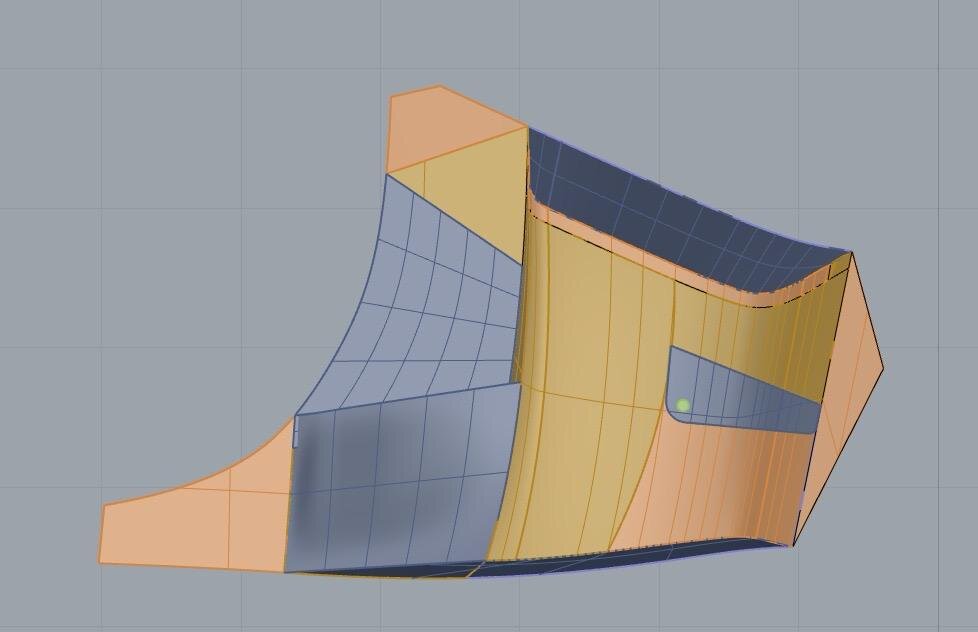

Color and fabric visualization 1

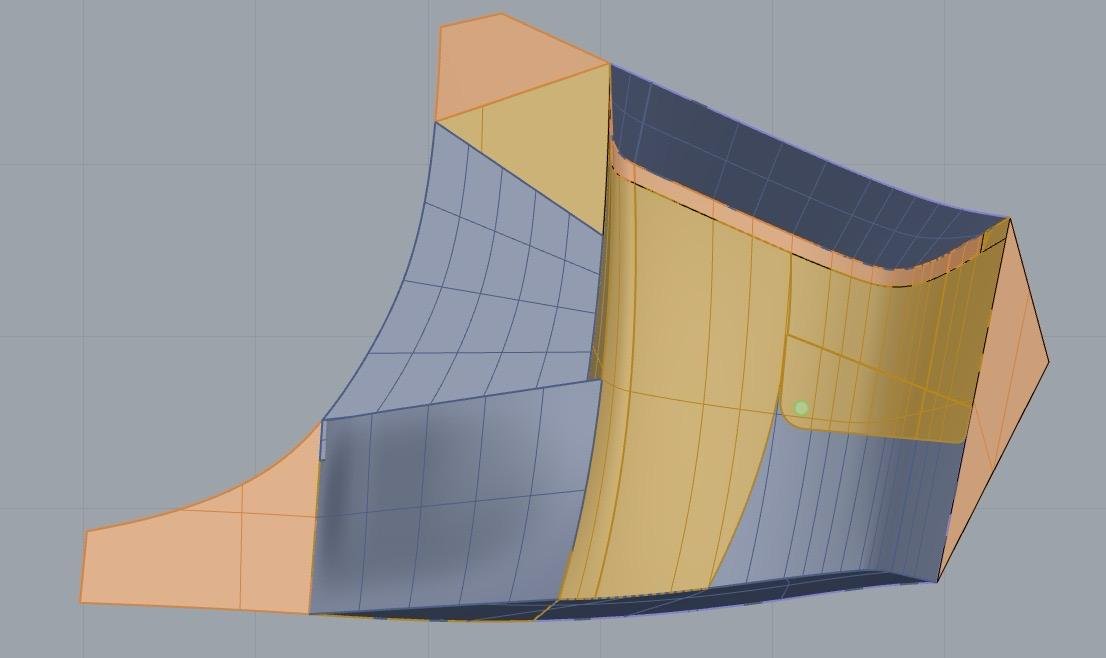

Color and fabric visualization 2

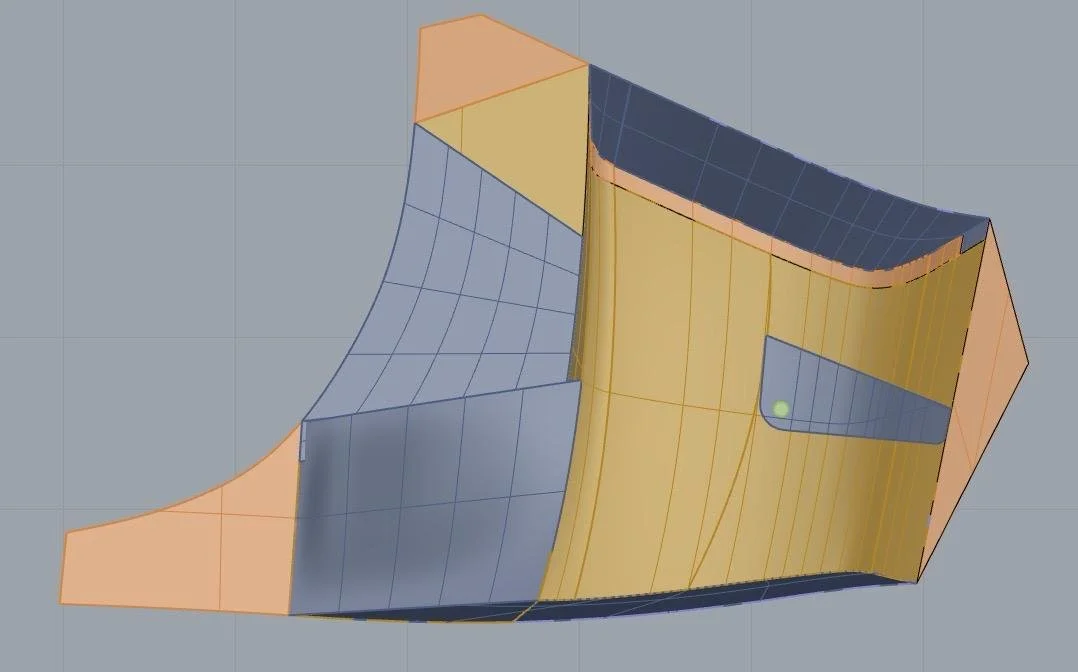

Color and fabric visualization 3 (Chose this one)

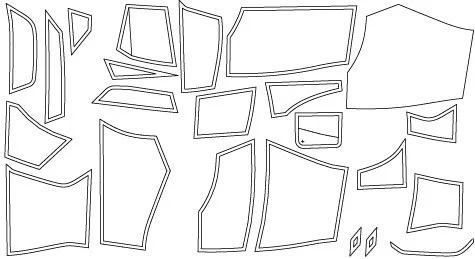

Pattern layout

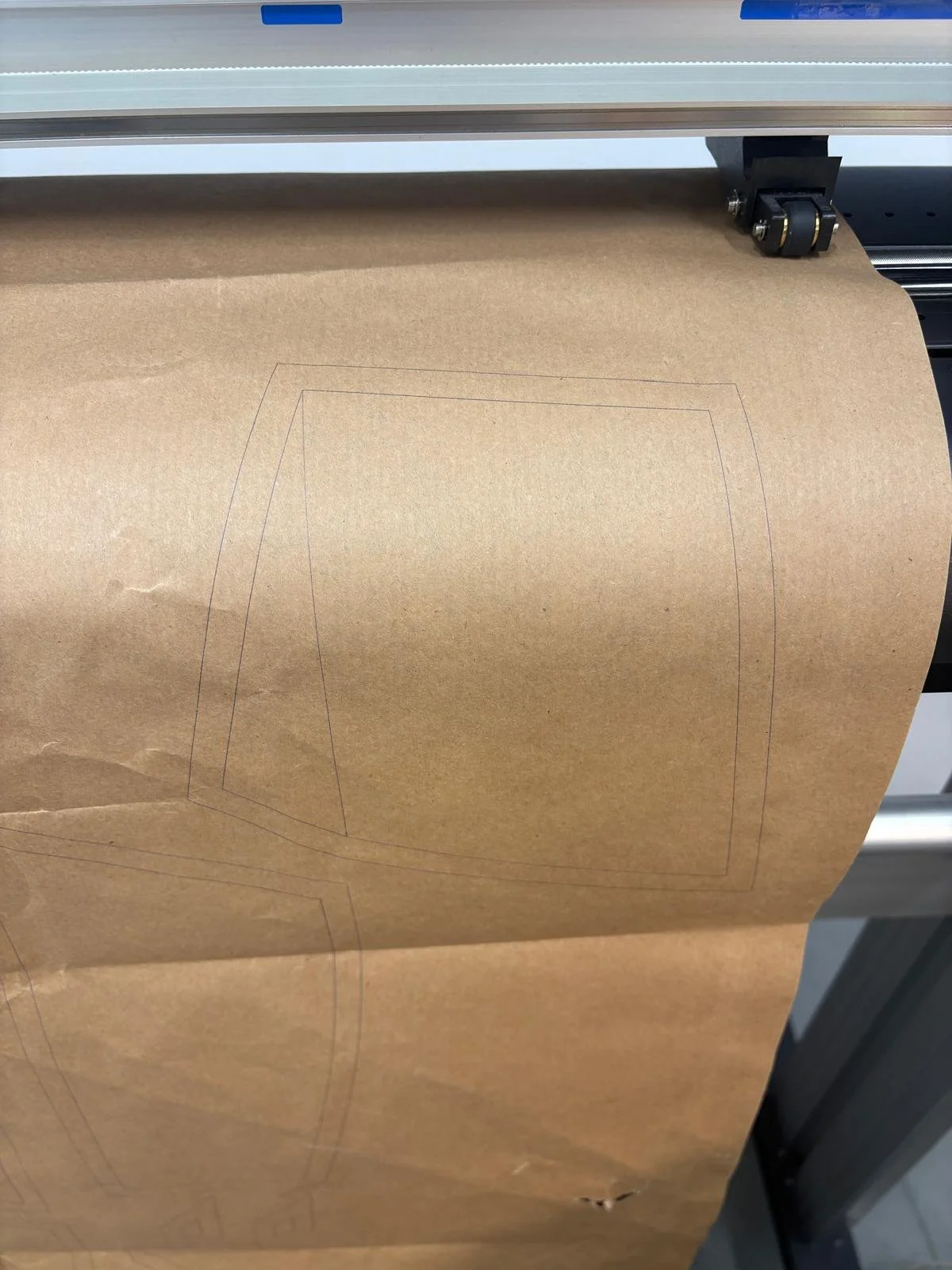

Plotting final pattern

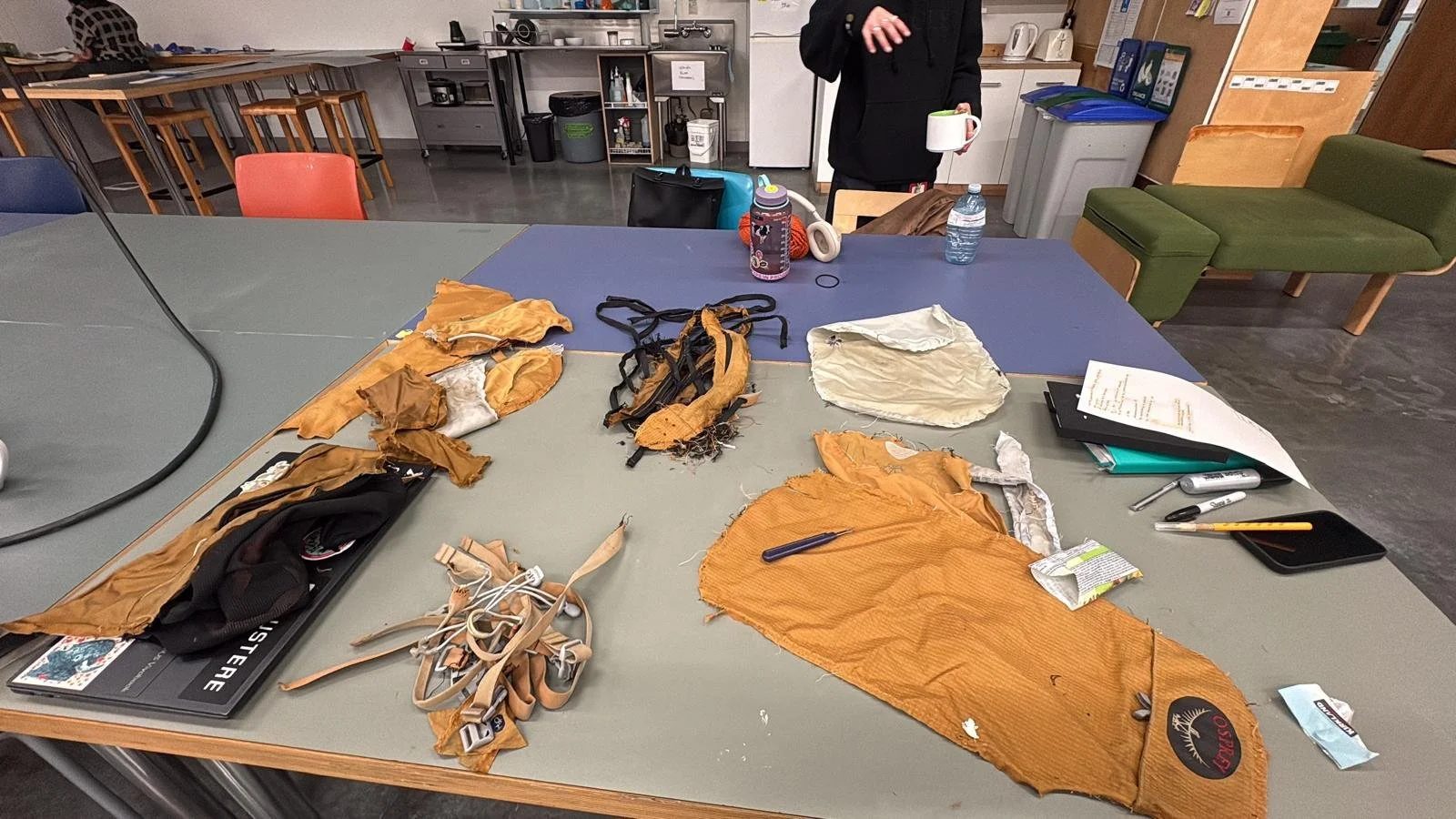

Deconstructing 45L osprey pack for fabric

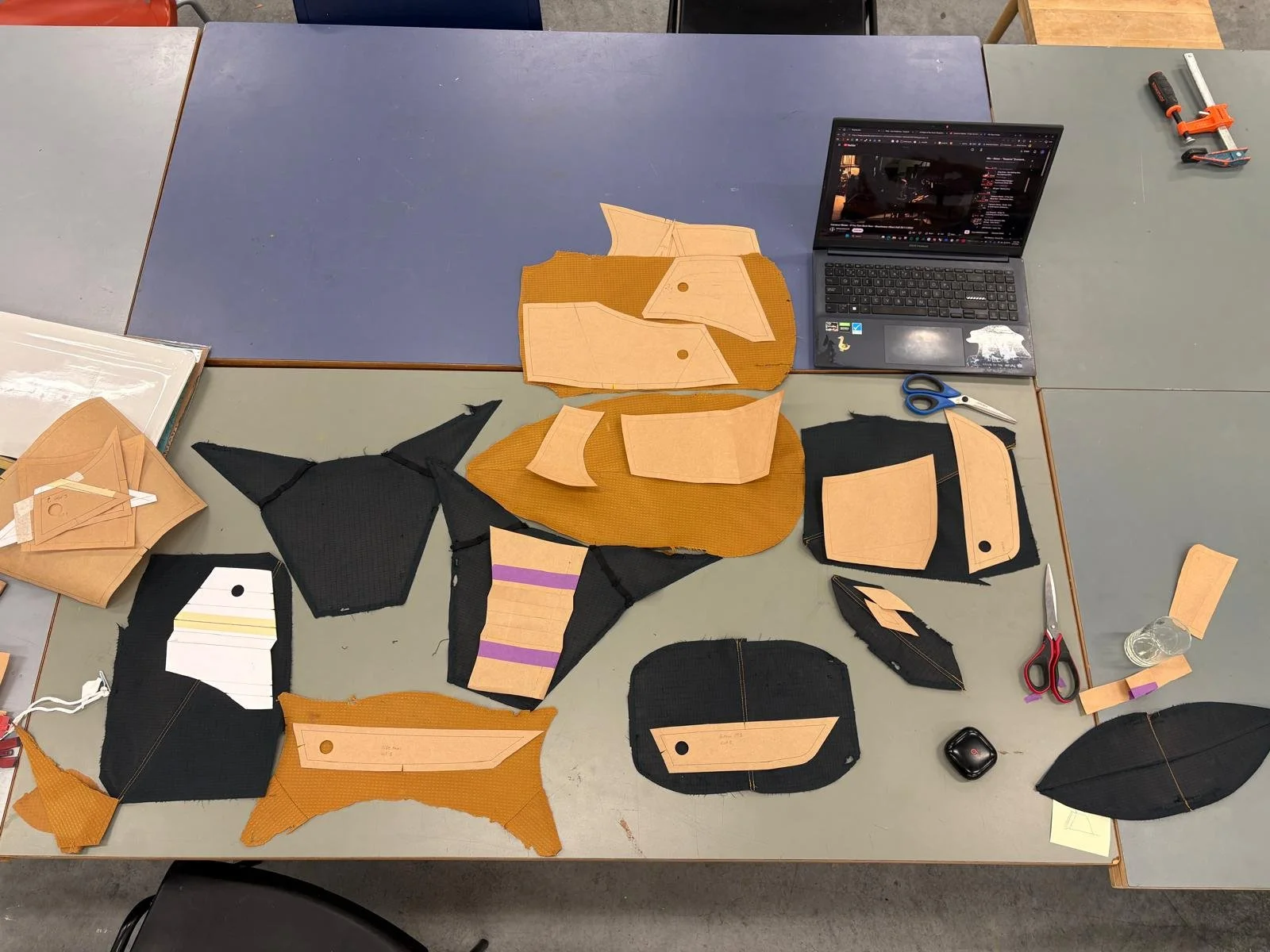

Pattern layout. the Rhino 3D visualization was fundamental for this part of the process.

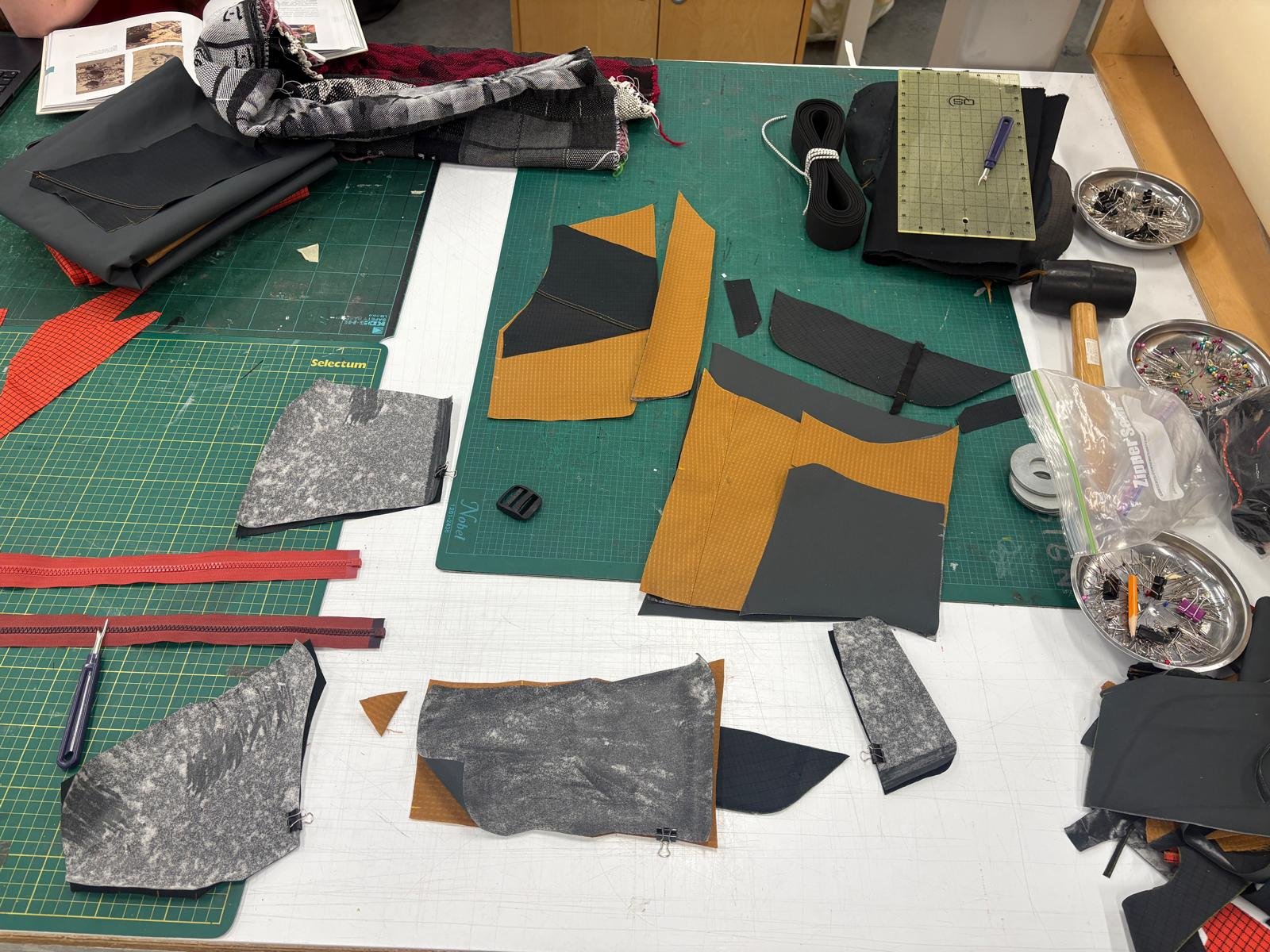

Cutting out panels

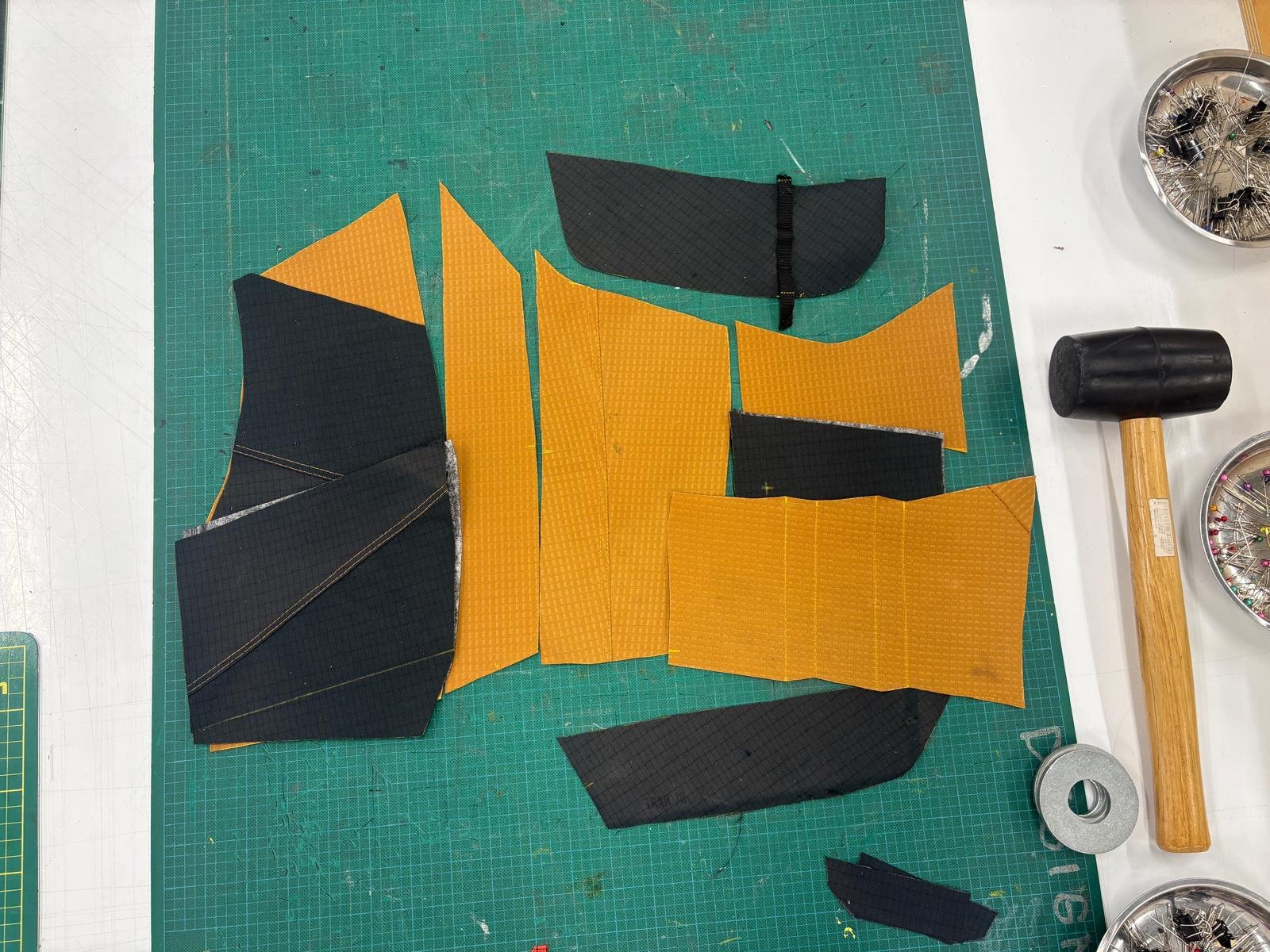

Initial panel layout

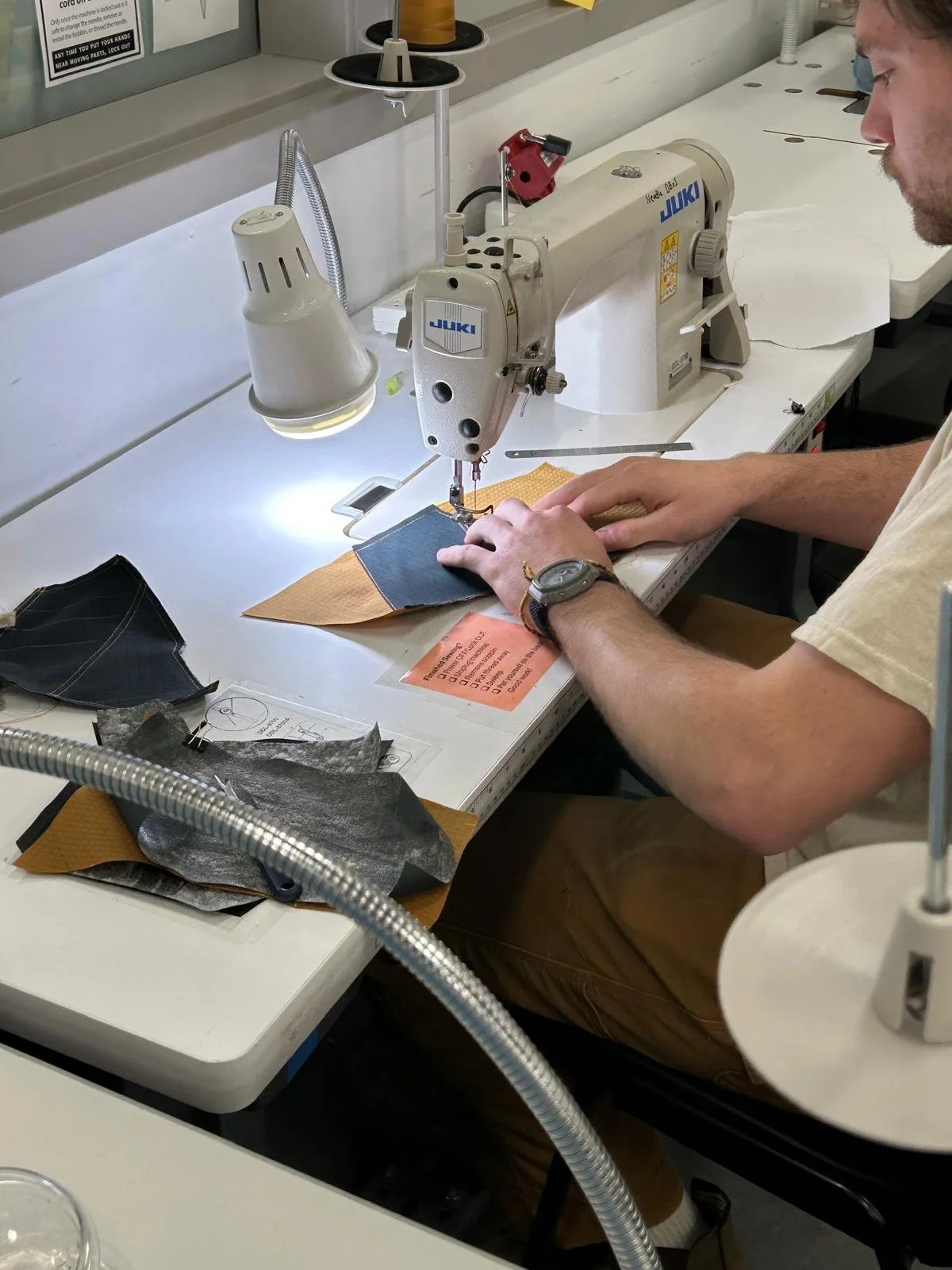

Sewing

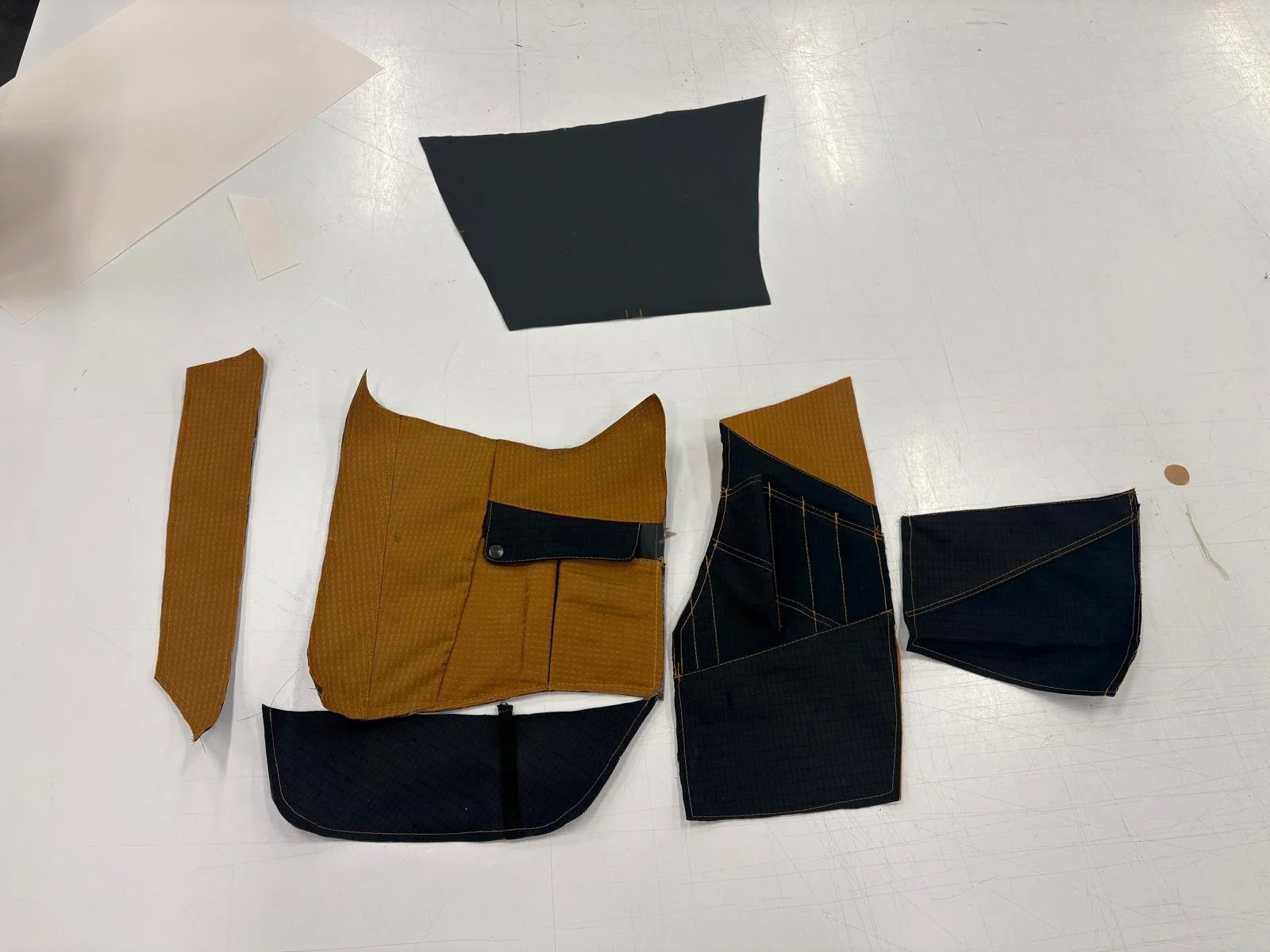

Component assembly

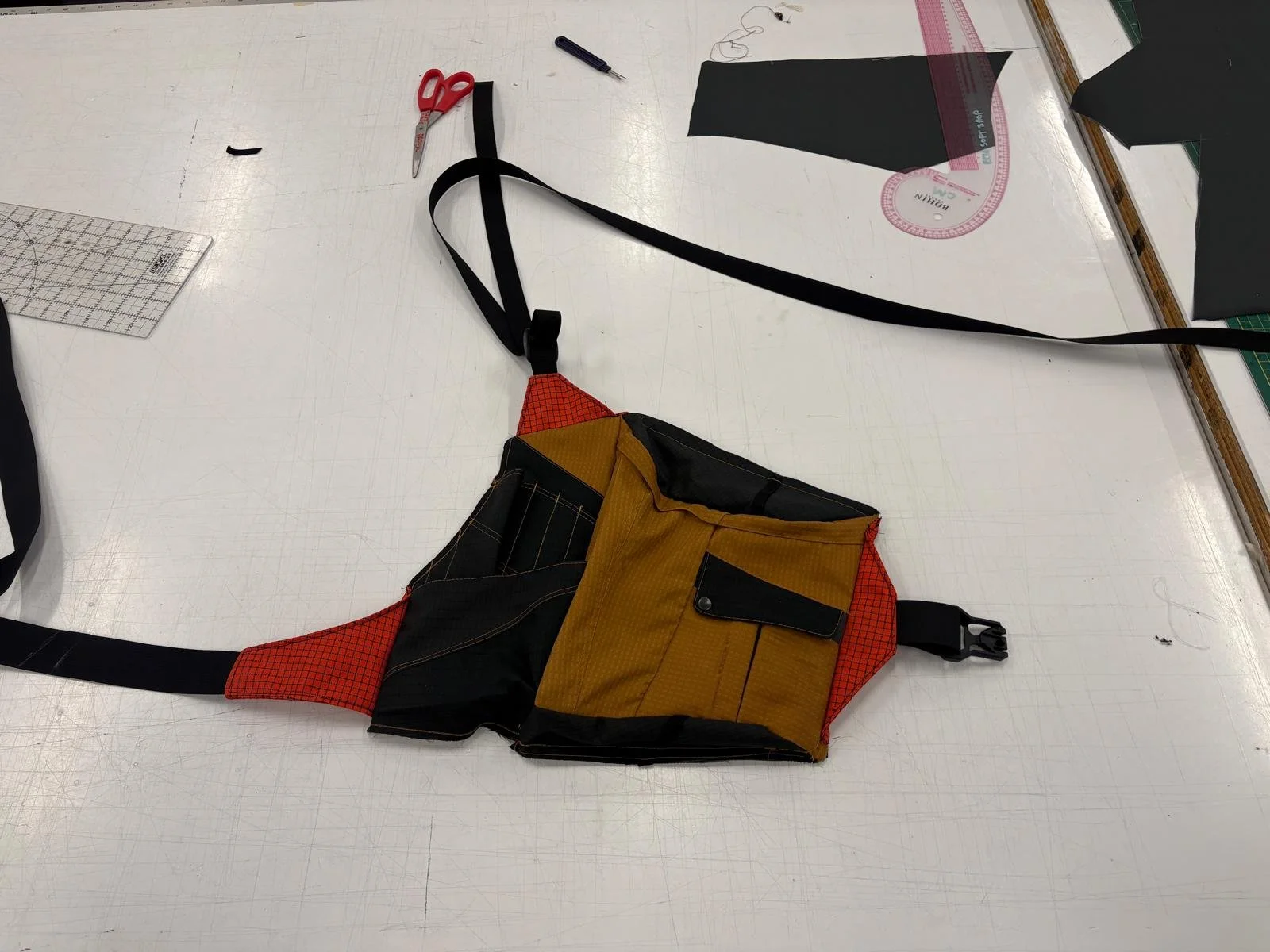

Final assembly

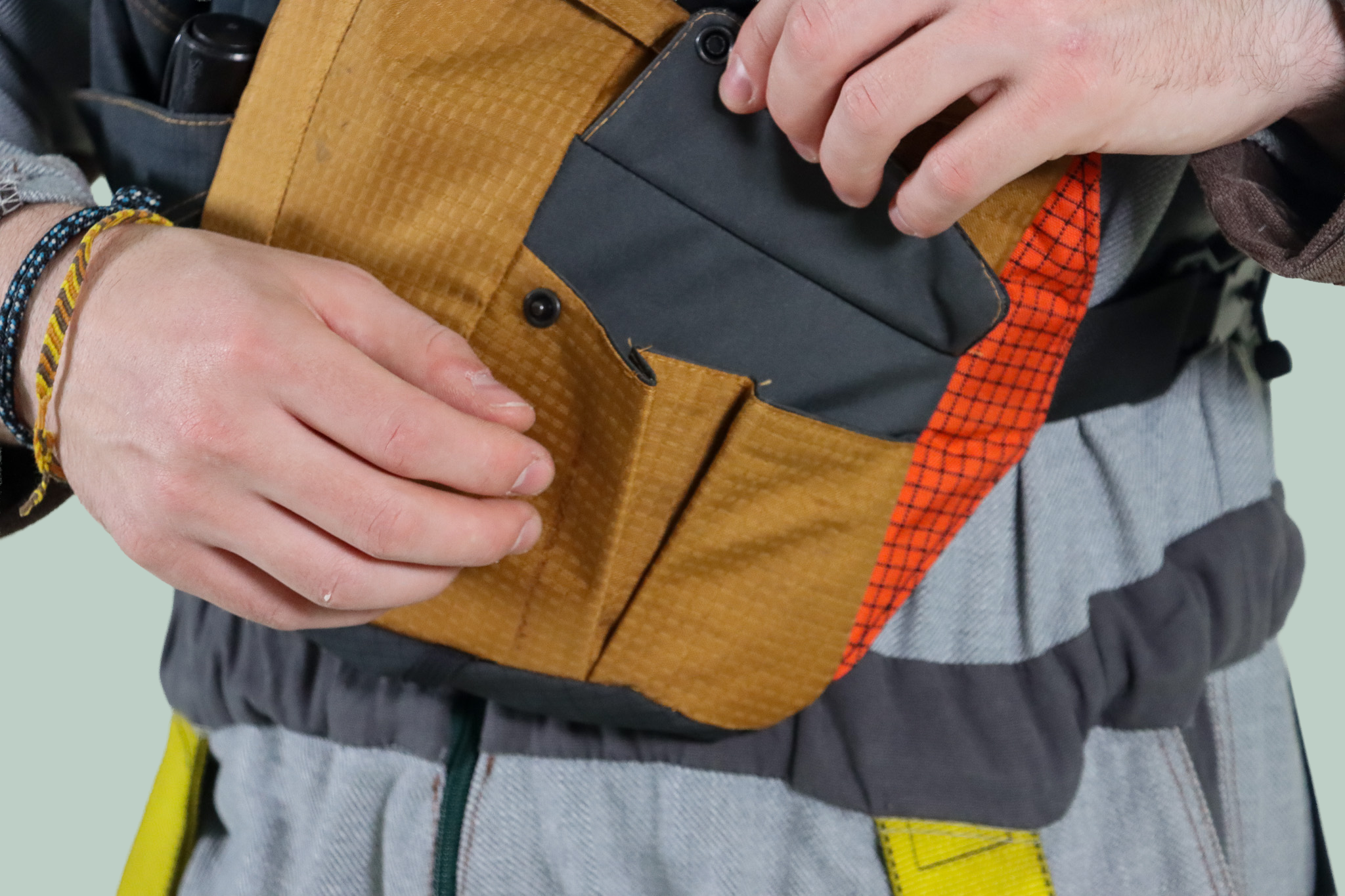

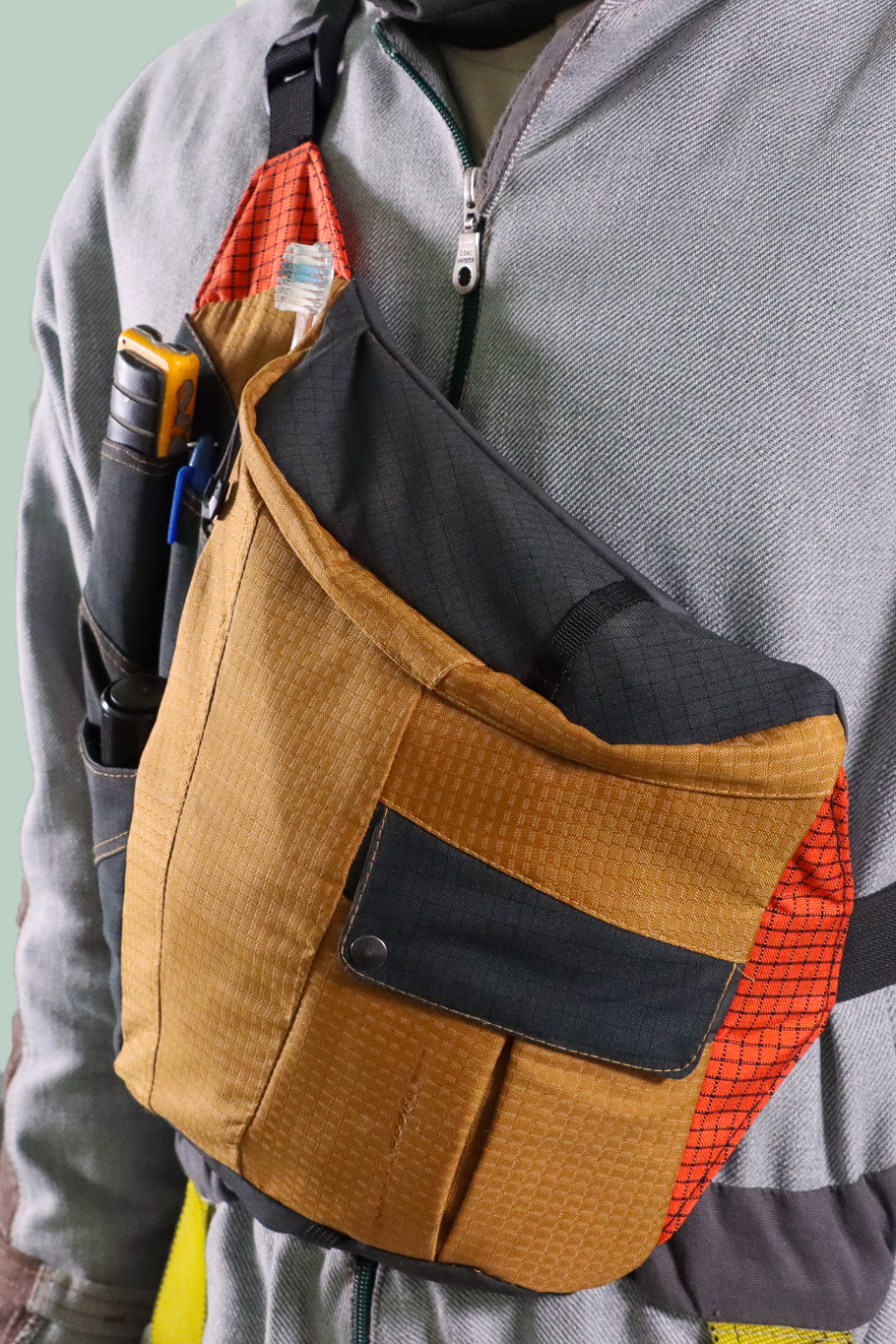

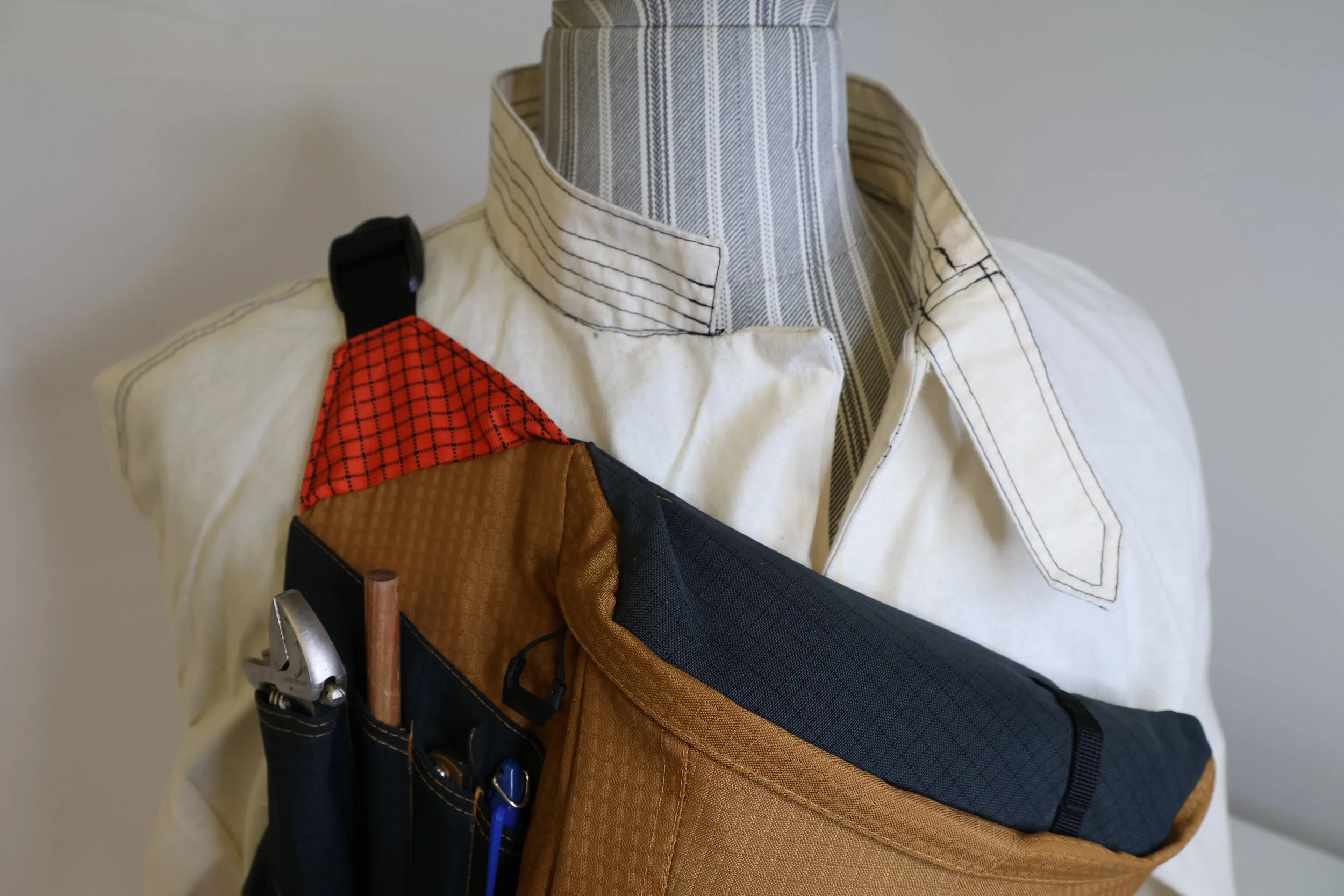

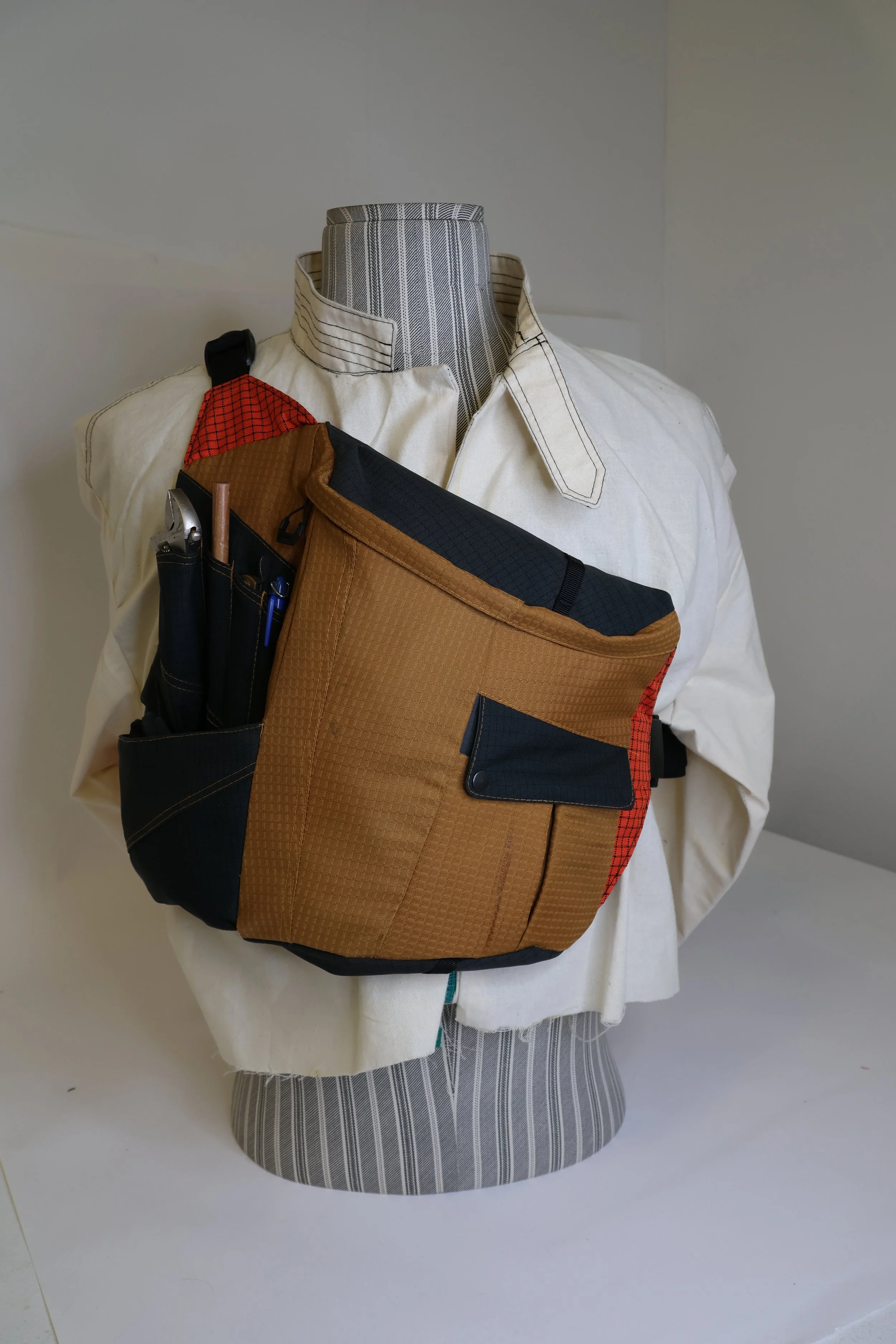

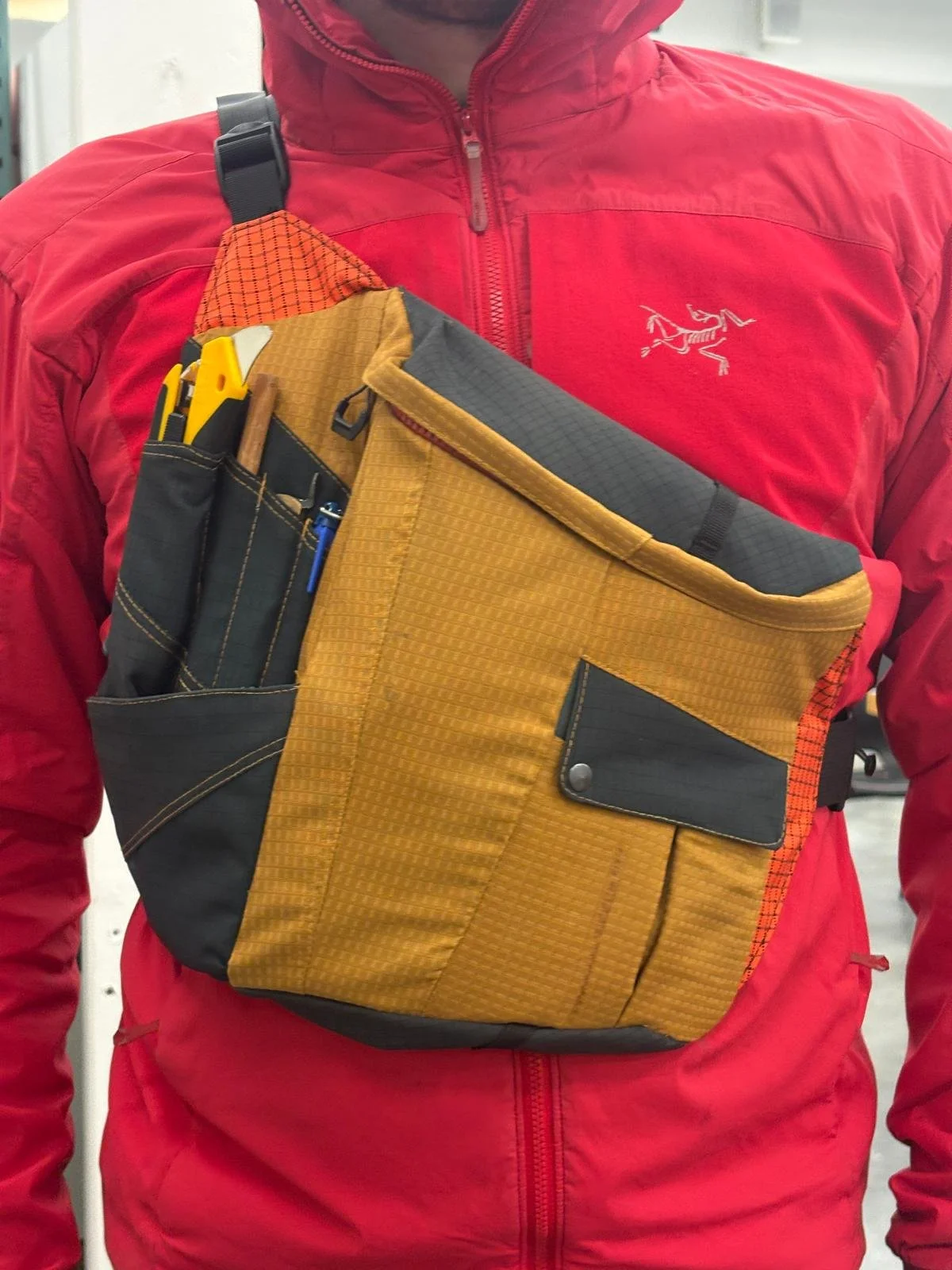

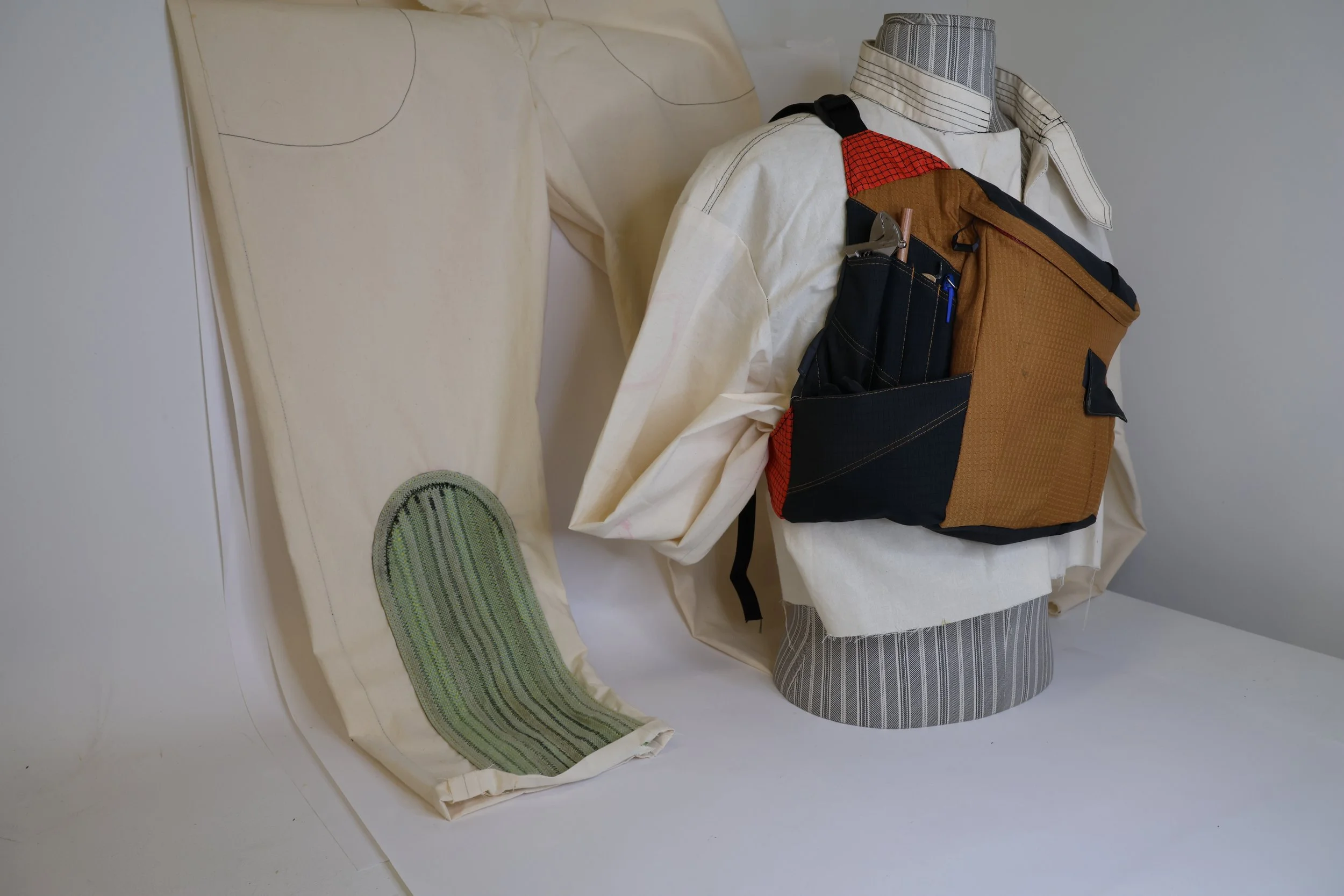

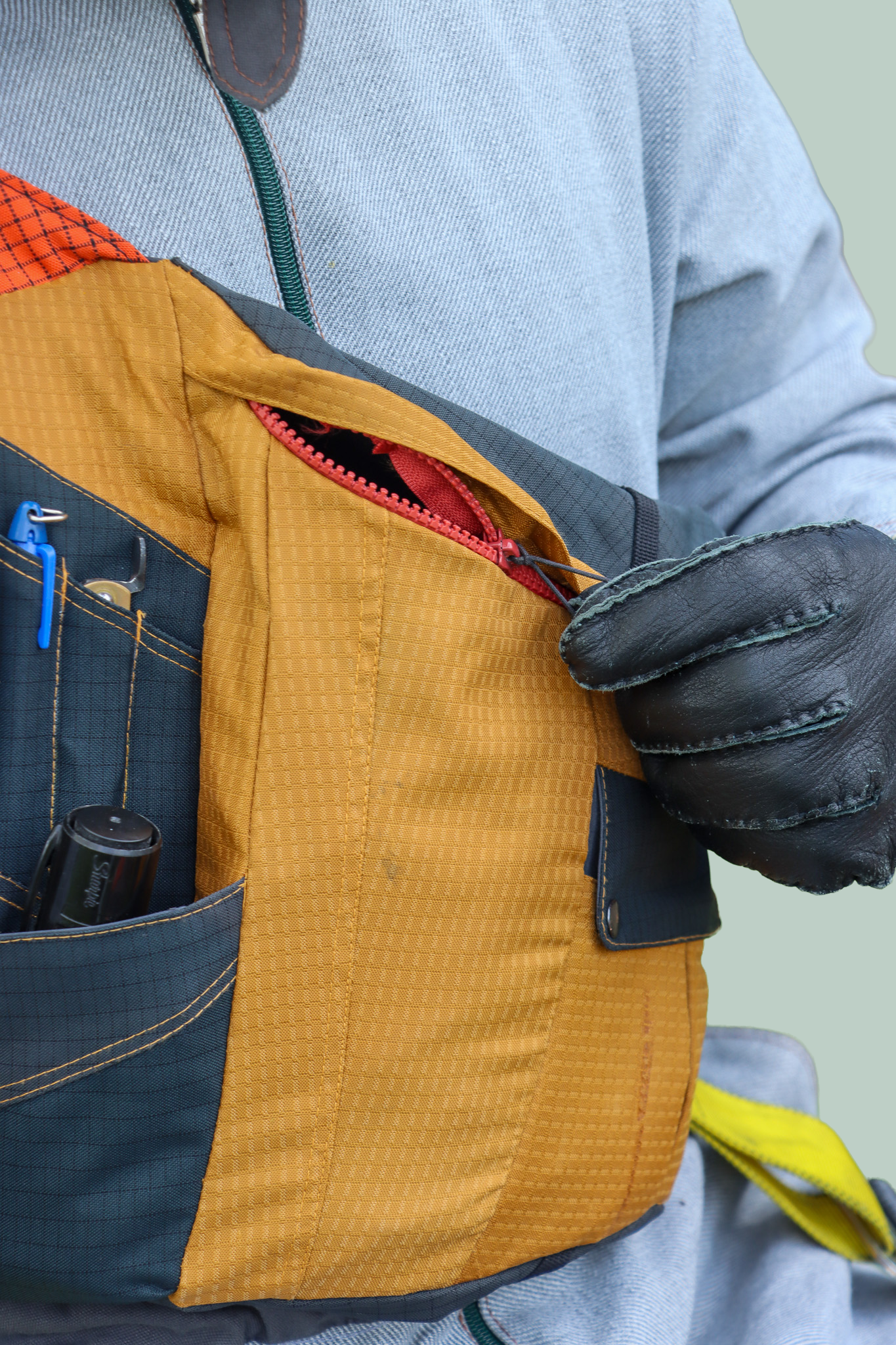

Final Tool Kit with jumpsuit prototype
